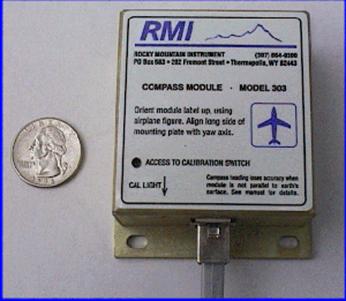

Compass Module Specifications



Page Update!

We have had to discontinue sales of the Compass Module. The manufacturer of the internal sensor component has discontinued its use. If a suitable replacement is found, we will then resume sales. This notice posted on 6/26/2006.

Specifications

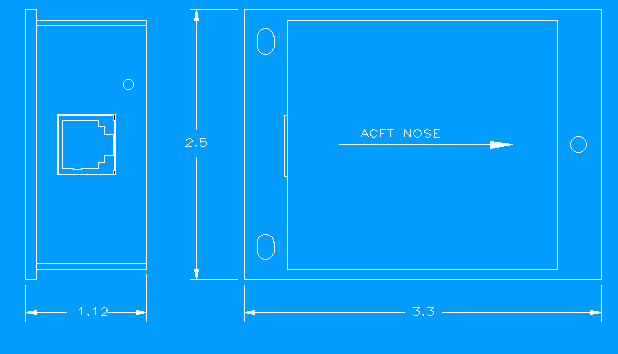

Size, Model 303	2.5W x 3.3L x 1.2H in (15.9W x 8.4L x 3H cm)
Weight, Model 303	3.75 oz (105 grams)
Voltage/Power	+8 to +30 VDC @ less than 50 ma
Ourput	RS232
Operating Temperature	-20 to +70 degrees C
Operation Altitude	-2000 to +35000 feet
Accuracy, Model 303	2 degrees RMS when level (after calibration)


























Warranty

All components are guaranteed for a period of two years from the date of first flight against defects in materials and workmanship.
