microENCODER Specifications



Functions Provided



Altimeter

-2000 to +46000 feet

Airspeed - standard

30 to 476 knots (35 to 547 mph) (0 to .99 mach)

Airspeed - low option

15 to 156 knots (17 to 179 mph)

Vertical Speed

Digital range 0 to 9990 FPM



Bargraph range 1000 to 6000 FPM (user selectable)

Outside Air Temperature

-50 to +99C (-58 to 210F)

Encoder Output

-2000 to +46000 feet

Magnetic Heading

0-359 Degrees



With optional compass module



Specifications

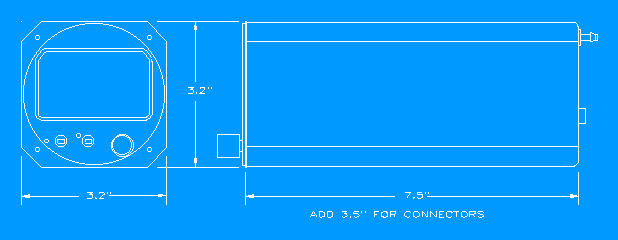

Size

3.2in x 3.2 in x 7.5 in (8.2x8.2x19.1 cm) Std. 3-1/8 in mtg.



Add 3.5 in to depth when using connectors provided

Weight

1.4 pounds (.65 kg)

Power

11 to 31 volts DC, 8 watts

Cooling

Not required

Temperature

-30 to +70C operating

Audio Output

200 mw into 600 ohm load



Warranty

All components are guaranteed for a period of two years from the date of first flight against defects in materials and workmanship.
